Bird View System

Blind spots are the main cause of many vehicle damages and personal injuries. All vehicles have blind spots which are obscured to the driver, making it difficult to control the vehicle safely.

Our system provides a seamless all-round bird view around the vehicle. So, blind spots will be eliminated and our system aids the driver when maneuvering and parking. The complete surround view helps to save lives, protect people, prevent vehicle damage and increase efficiency. The benefits of the system are extending beyond reducing collisions with people and objects. It also convinces with a clear view through – even at night thanks to the integrated IR lighting. In addition, features such as GPS tracking and video recording are optionally available. The display options of the monitor offer an additional function to show the full image of the respective camera along with the bird view image. This function will be activated automatically according to the driving situation for example when turning or reversing. Our system is characterized by fast installation and easy calibration. The 360° bird view system can also be used as a 270° solution with 3 cameras.



Bird View System
Bird View System


Our system is suitable, and already successfully used, for the following vehicle types :

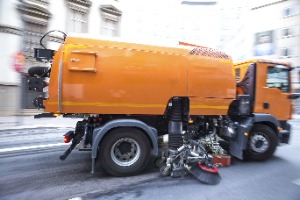

Sweeper

Sweeper

Foodtruck

Foodtruck

Trucks

Trucks

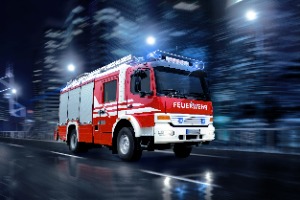

Fireengine

Fireengine

Reachstacker

Reachstacker

Excavator

Excavator

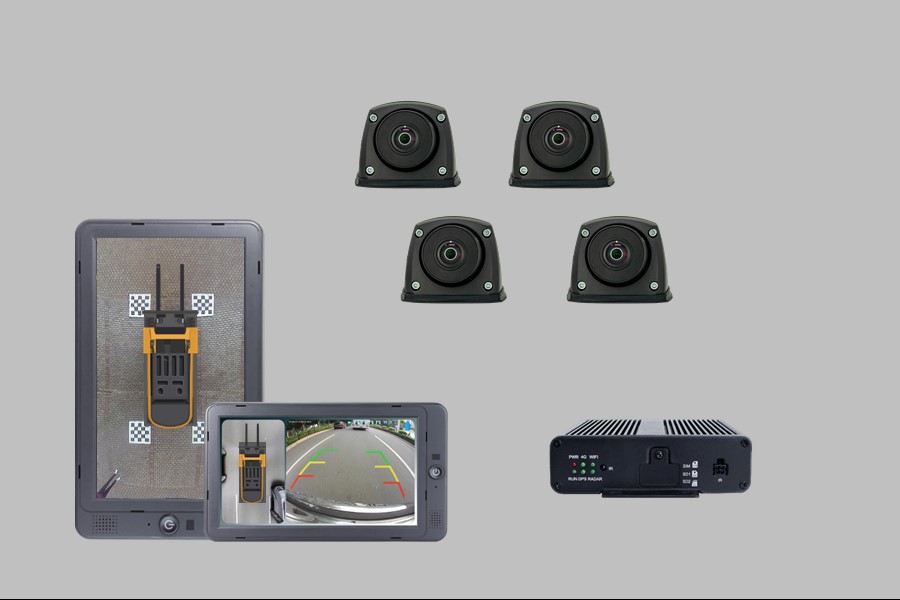

Overview of the components of our top view system

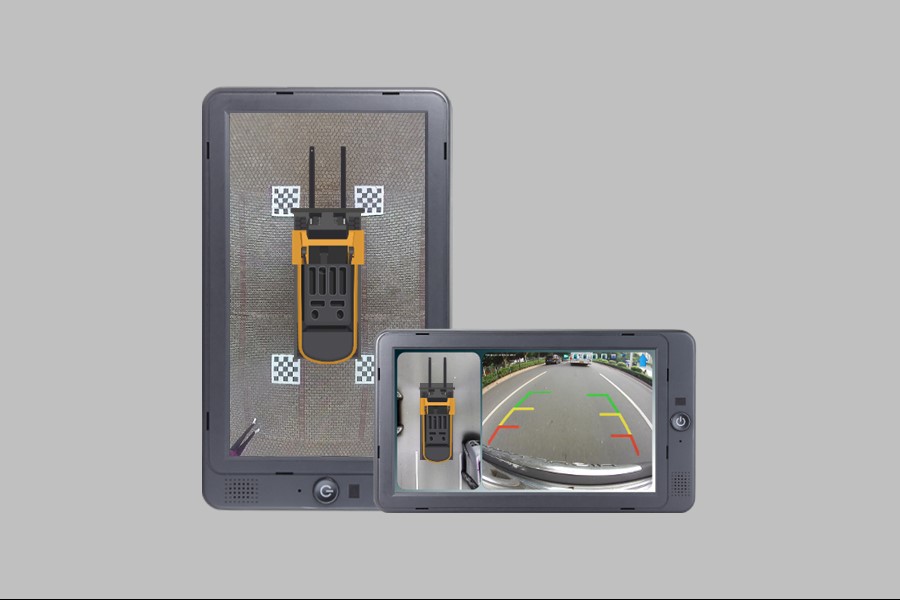

Monitor-7"

Monitor-7"

Key Facts:
7" HD touch display
3 Camera inputs
Power supply 10 bis 32 V DC

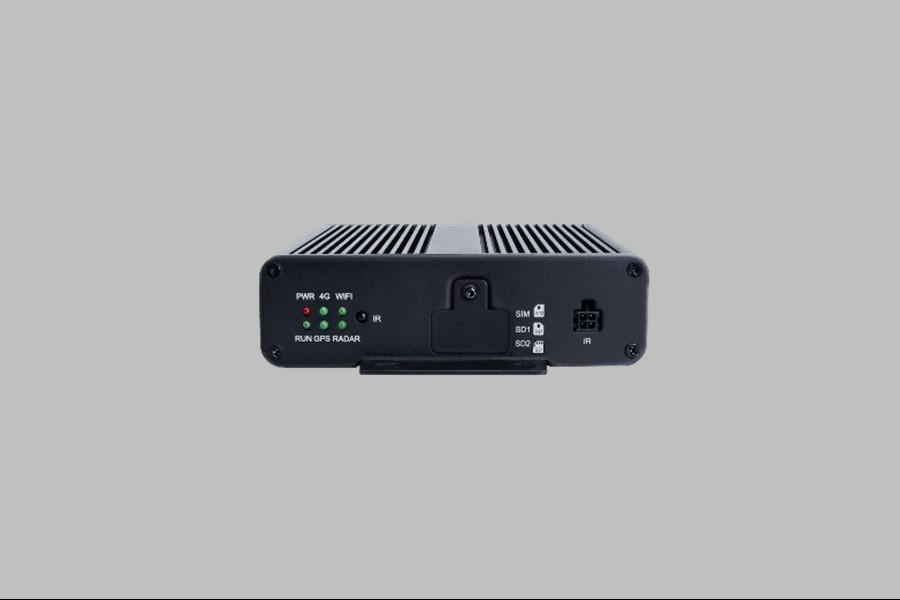

Control-Unit

Control-Unit

Key Facts:
Seamless all-round bird view 270° or 360°
Customer-specific vehicle image
Power supply 10 to 32 V DC
Flexible display options
Easy calibration
GPS tracking and Videorecording

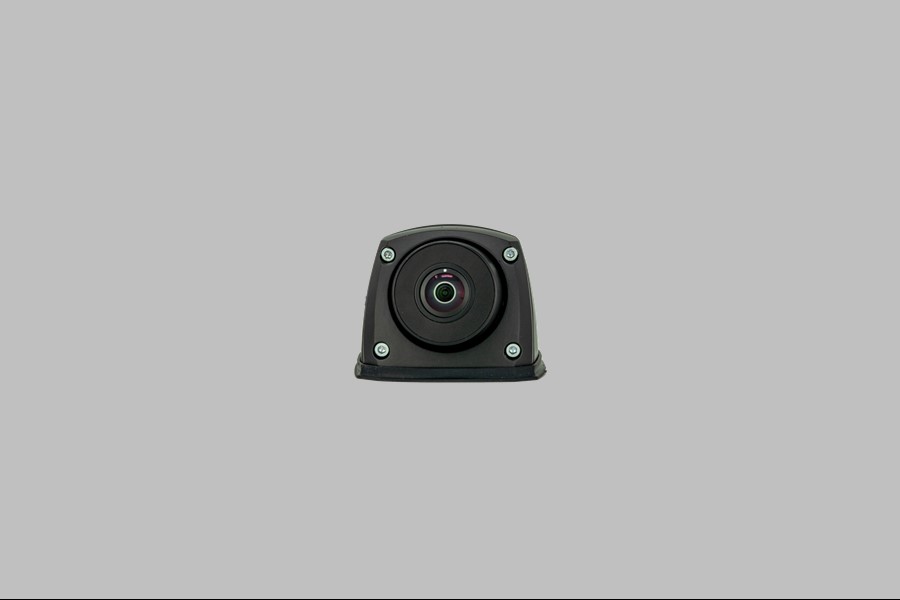

Camera

Camera

Key Facts:
190° angle of view
IR lighting
Protection class IP69K
FullHD 1080P resolution

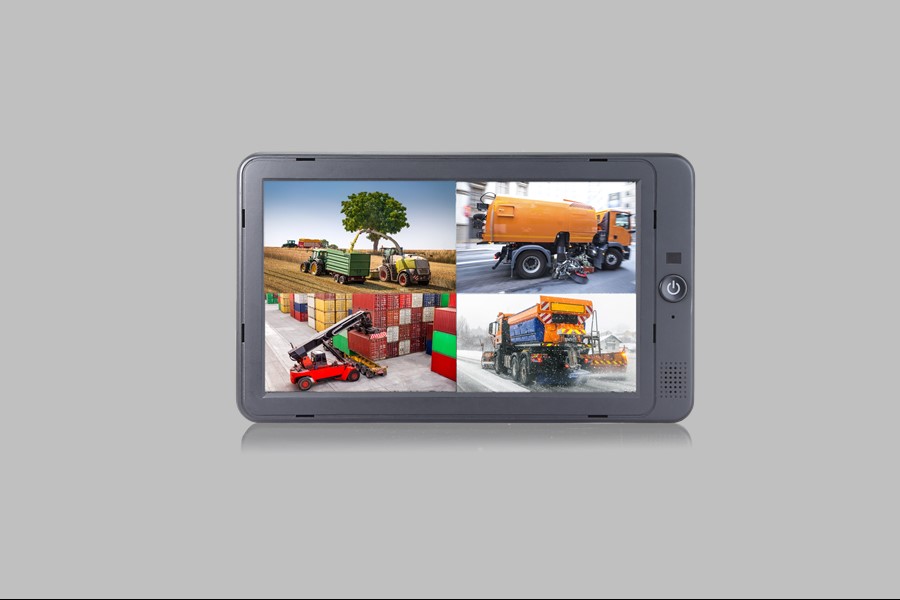

Monitor-10"

Monitor-10"

Key Facts:
10" Quad HD Touchmonitor
4 Camera inputs
Flexible display options
Power supply 10 bis 32 V DC

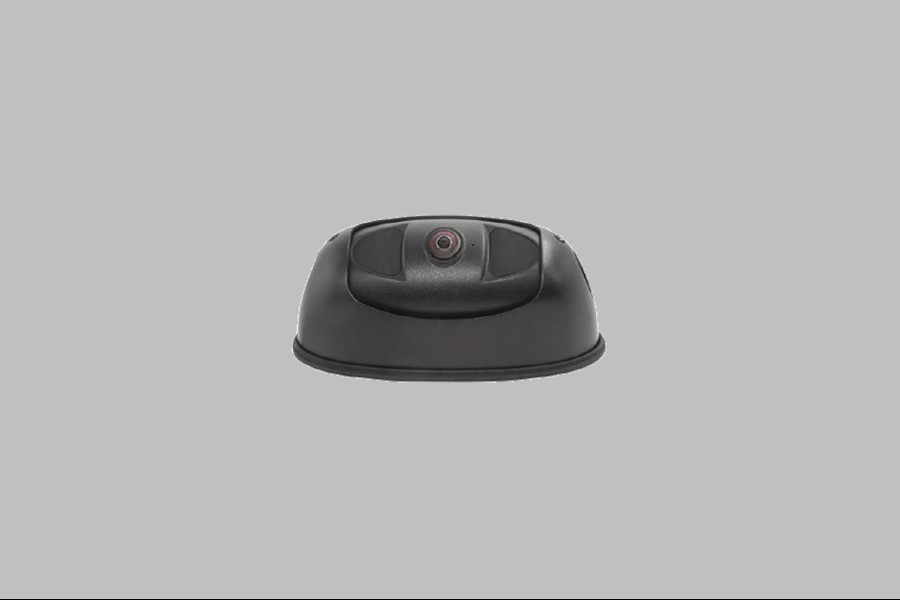

Camera-AI

Camera-AI

Key Facts:
Bird View with Pedestrian and cyclist detection
170° angle of view
Protection class IP69K
Easy installation

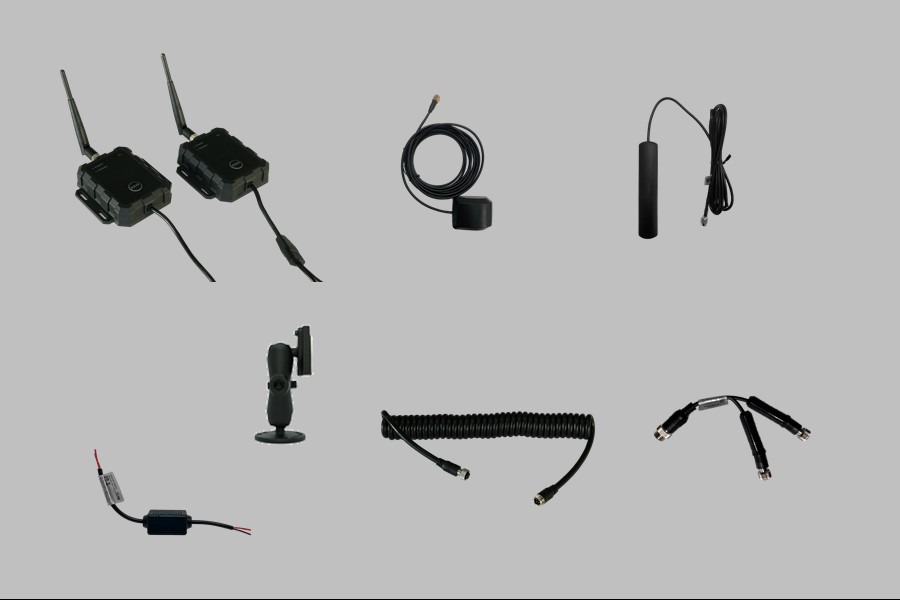

Accessories

Accessories

Key Facts:
Wireless System
Spiral cable
Mast cable
GPS-Antenna
RAM-Mounting
Remote-Control
Wlan-Antenna

You’ll find further information in our Flyer!

Here you find our System Overview!


Your Sales Contact

You have questions or a project inquiry? Please contact us!
We are looking forward to exciting tasks and a good cooperation.
